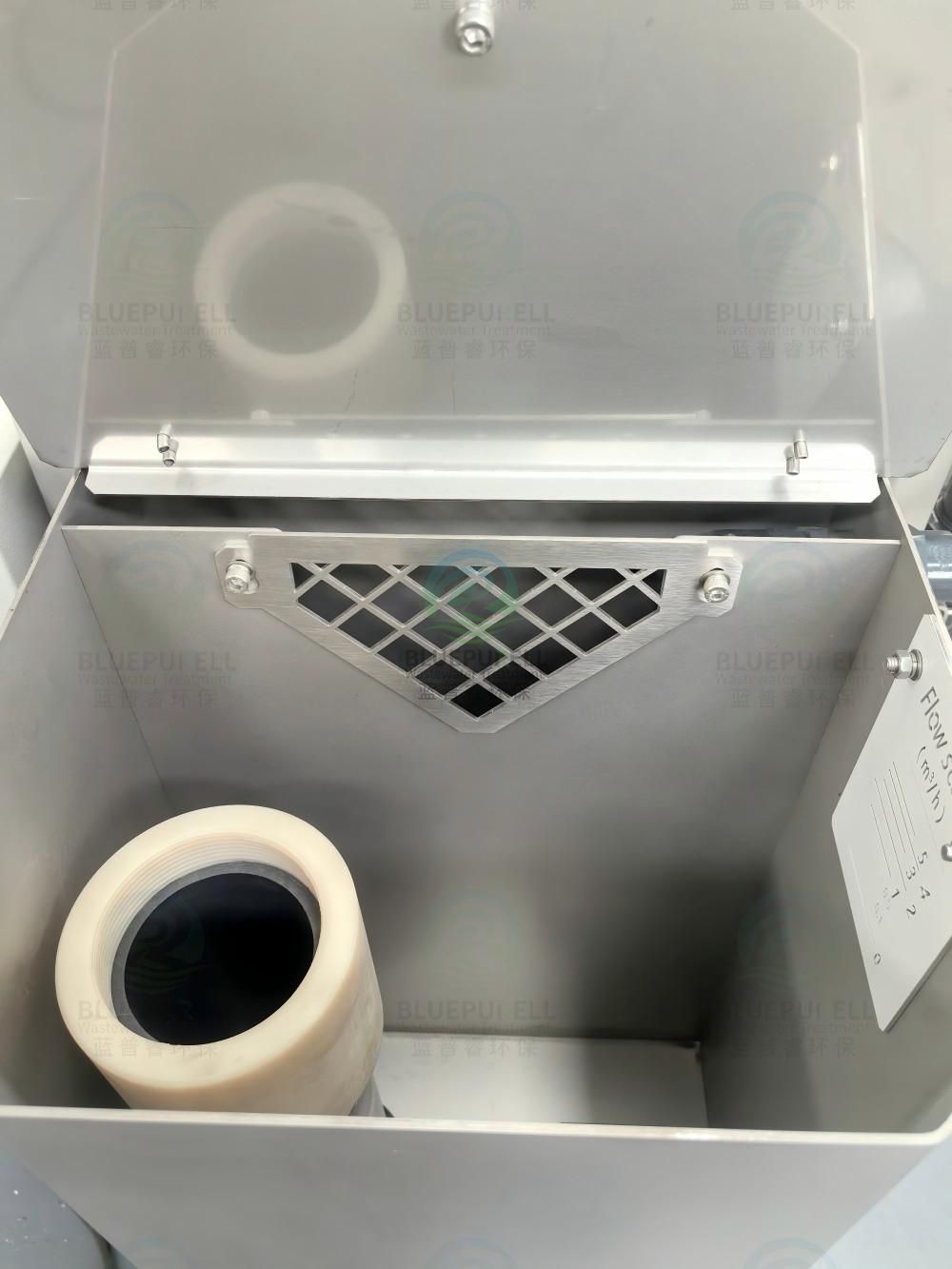

How to Adjust the Sludge Inflow in the Flocculation Mixing Tank of a Multi-Disk Screw Press

■ When the sludge inflow increases:

1. Rotate to the left to raise the adjustment pipe, causing the water level to rise.
2. As the water level rises, the amount of water flowing over the weir increases, leading to a higher sludge inflow.

■ When the sludge inflow decreases:

1. Rotate to the right to lower the adjustment pipe, causing the water level to drop.
2. As the water level decreases, the amount of water flowing over the weir decreases, leading to a lower sludge inflow.

■ Sludge Inflow Standard (Weir Scale)

The scale on the water surface provides a rough indication of the current sludge flow rate.
The weir scale can be used as a reference standard for measurement.
